RS485CBL Five-Conductor Cable with M12 Five-Pin A-Coded Connector

Überblick

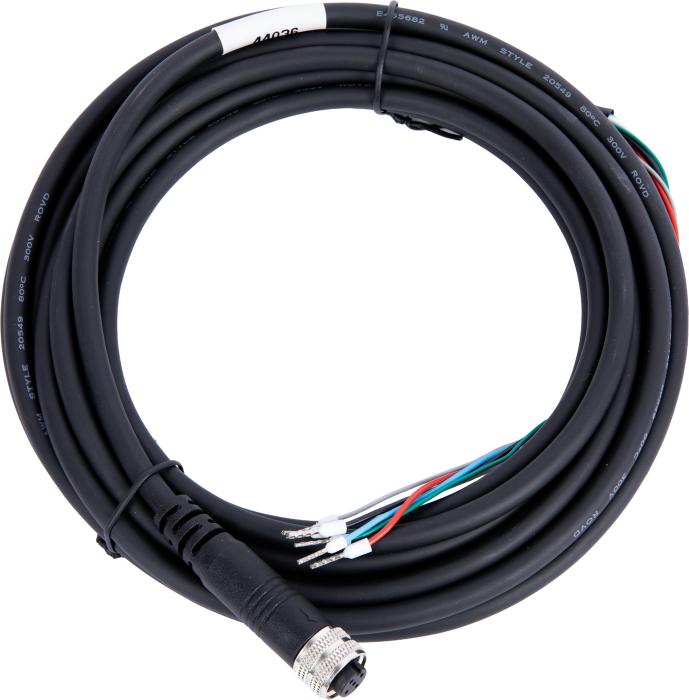

The RS485CBL cable uses a five-conductor shielded cable with an M12 five-pin A-coded connector. The cable has a polyurethane jacket that is UV resistant. The RS485CBL has been custom designed for sensors that use the RS-485 Modbus protocol with integrated power and signal lines. The signal lines have twisted pairs with 24-gauge conductors, and the power lines have a heavier 20-gauge wire, making the cable uniquely suitable for sensors with a higher current draw that have either short or long runs. An aluminum Mylar shield is grounded via a drain wire and connected to the M12 nut.

Lesen Sie mehr

Bilder

Technische Beschreibung

Wire Color Assignments and RS-485 Function Assignments

Pin # Wire Color AWG Function
1 Red 20 Sensor Power +
2 White 24 RS-485 B+
3 Green 24 RS-485 Ground
4 Black 20 Sensor Power Ground
5 Blue 24 RS-485 A-

Note:

  1. Pin 2 and Pin 5 use the twisted pair white and blue for the RS-485 line + and - signals.
  2. The twisted pair conductors have an aluminum Mylar shield connected to a drain wire. The drain wire is connected to the M12 nut.

Kompatibel mit

Please note: The following shows notable compatibility information. It is not a comprehensive list of all compatible products.

Sensors

Product Compatible Note
ClimaVue 40
CS241DM G2
DustVue 10

Additional Compatibility Information

The RS485CBL is known to be compatible with these Hukseflux sensors: SR30, SR300, and SR05.

The following sensors can also use the RS485CBL with the respective adapters to bring the RS-485 signals back to the twisted pair line in the RS485CBL:

Sensor and Manufacturer Campbell Scientific Adapter Part Number
MS80SH (EKO) 44338
RC22, Mars (Atonometrics) 44339
CS241DM (Campbell Scientific) 44340
SMP 11/12 (Kipp & Zonen) 44489

Spezifikationen

Material UV-resistant, black jacket
Operating Temperature Range -40° to +70°C
Nominal Impedance 100 ohm (for the twisted pair)
